A project can be set up only one concrete batch plant, can also be set up by concrete batch plant, or set up a large concrete batch plant coupled with the right amount of concrete transport vehicles; specific to the actual situation.

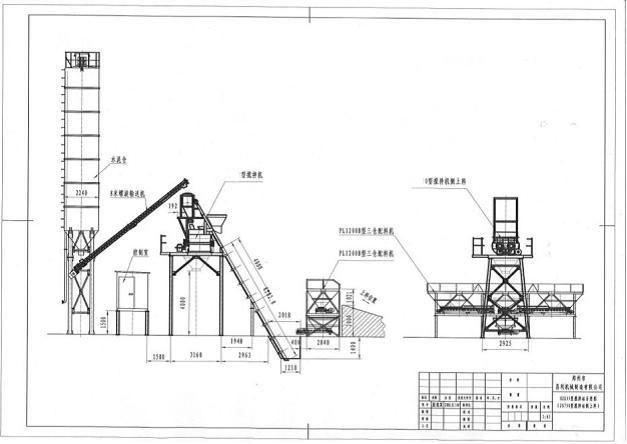

The concrete batch plant layout space requirements: single 2 m3, 3 m3 machine, equipment covers an area of about 21 mx51m;Combined with yard, car parks, roads, office building, repair shop, recycling pool, etc., generally need to site 40 mx80m (5 acres);The 2 m3, 3 m3 stand generally need a 60 mx80m (7.5 acres), if the shape is more complex, should according to the layout of the equipment, consider the space utilization.
Second, the sand, stone yard area should be large enough to meet the needs of the project consumption, and can facilitate the organization to feed the feed; sand and gravel stacking to prevent the mixing caused by concrete compartments are not allowed; equipped with a loader Sand and gravel are stacked neatly; site to harden, easy loading loader and prevent mud and other debris into the material.

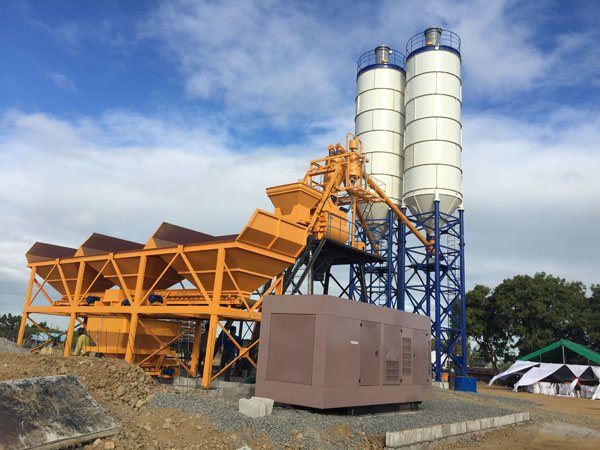

A concrete batch plant production line with at least two of the cement silo, it is best to three, take turns to use timely added
